● 600*1200MM Panel light

● Imported LGP 4mm thick with 110lm/W

● Dimmable, Emergency-back up are available.

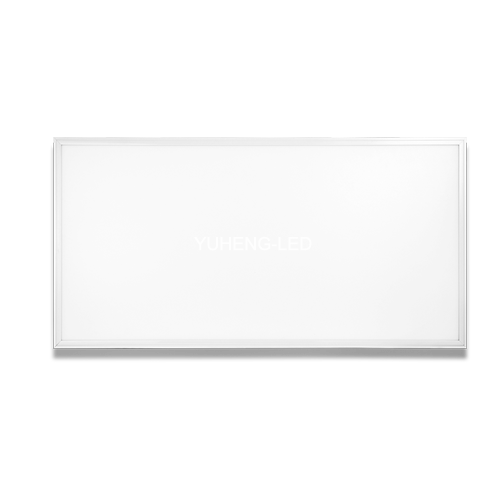

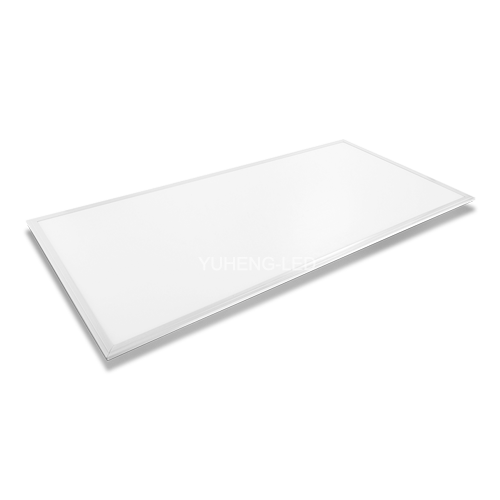

6001200mm Led Panel Light

Products

LED Strip Light
SMD2835 LED Strip SMD5050 LED Strips SMD3528 LED Strip SMD335 Side light Strip SMD5730 Led Strip AC110/220V LED Strip
LED Modules
Window border LED Module Mini LED Module High Power LED Module Injection LED Module PVC LED Modules
LED Panel Light
Square Led Panel Light Round Led Panel Light
LED Tube Light
T8 Led Tube Light Led Tri-proof Light
Led Aluminum Profile
YH-AL01 YH-AL02 YH-AL03 YH-AL04 YH-AL05 YH-AL06 YH-AL07 YH-AL08 YH-AL09 YH-AL10 YH-AL11 YH-AL12
LED Accessory
LED Controller&Amplifier LED Power Supply LED Connectors

Specification

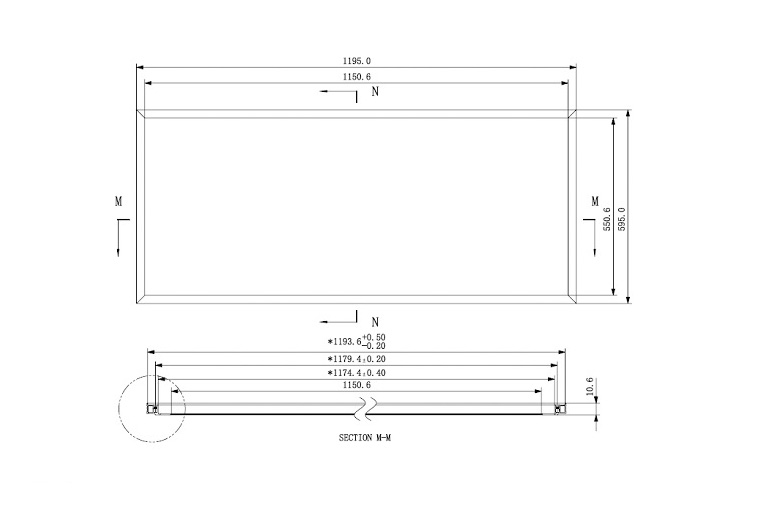

Dimension
Overview
Installtion

Part No.	YH-PA60120-60W	YH-PA60120-72W
Power	60W	72W
Size(mm)	59511959	59511959
Lumens	6600±5%	7920±5%
LED Qty	384pcs 4014	384pcs 4014
RA	>80	>80
Input Voltage	AC100V～240V	AC100V～240V
Frequency Range:	50Hz～60Hz	50Hz～60Hz
Total Harmonic Distortion	≤ 15 %	≤ 15 %
Beam Angle:	120°	120°
Working Temperature:	-20℃～ +45℃	-20℃～ +45℃
Storage Temperature:	-25℃～+65℃	-25℃～+65℃
IP Grade:	IP40	IP40
Working Life-span	50,000H	50,000H
